Jobs Dashboard

View / Admin Running Discovery Jobs​

Jobs Dashboard Summary​

The Jobs Dashboard provides users actionable insight into running discovery jobs. Via the main menu, Reports > Jobs Dashboard, users can get an at-a-glance overview of Device42 Discovery Job Statuses, can deep-dive into each job for more details, and can even "kill" and/or delete a running job.

The dashboard has three other sub-dashboards: Completed Jobs, Queue Processing Stats, and Other Jobs Summary. Refer to these sub-dashboard sections below for information on each.

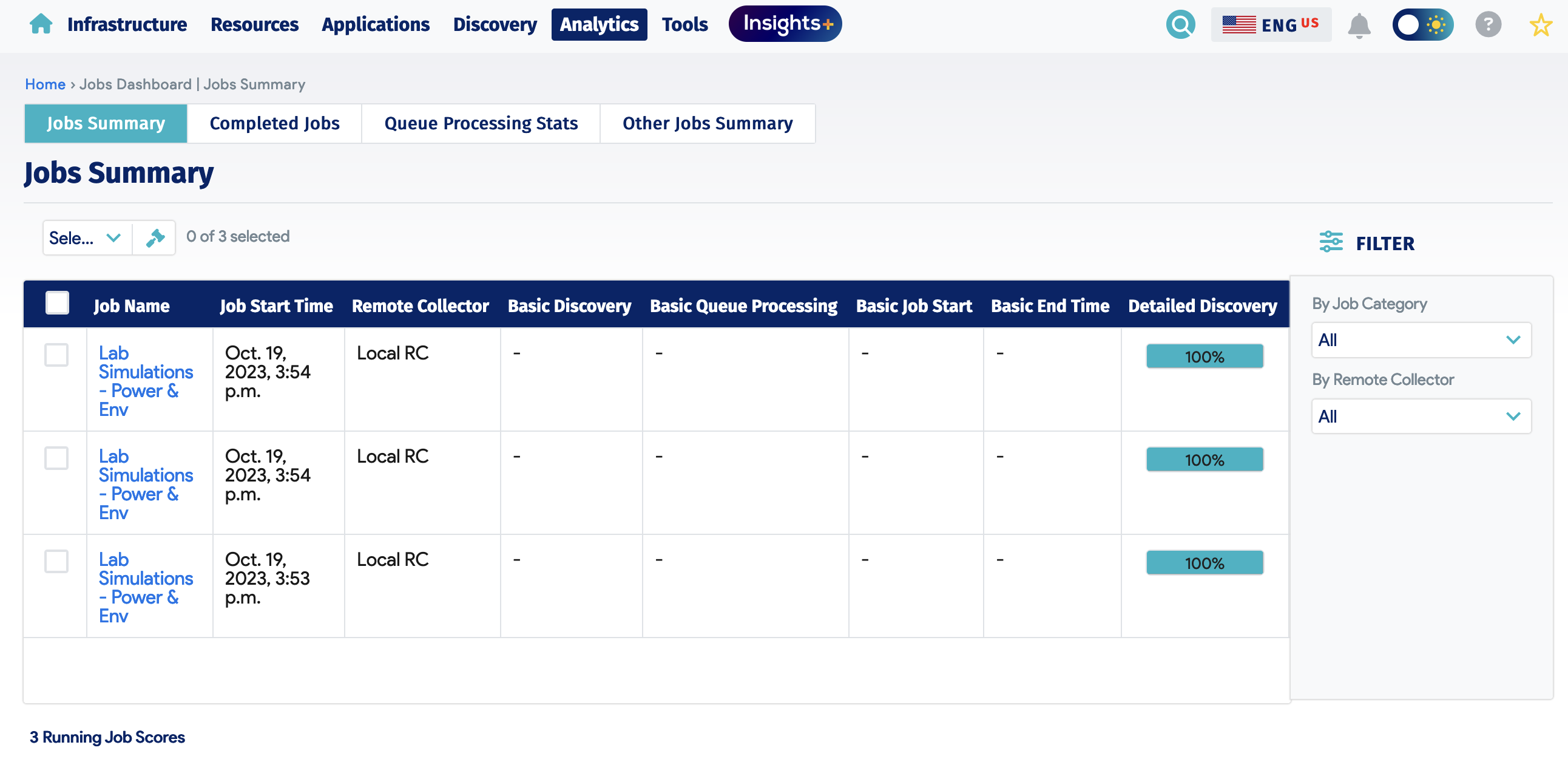

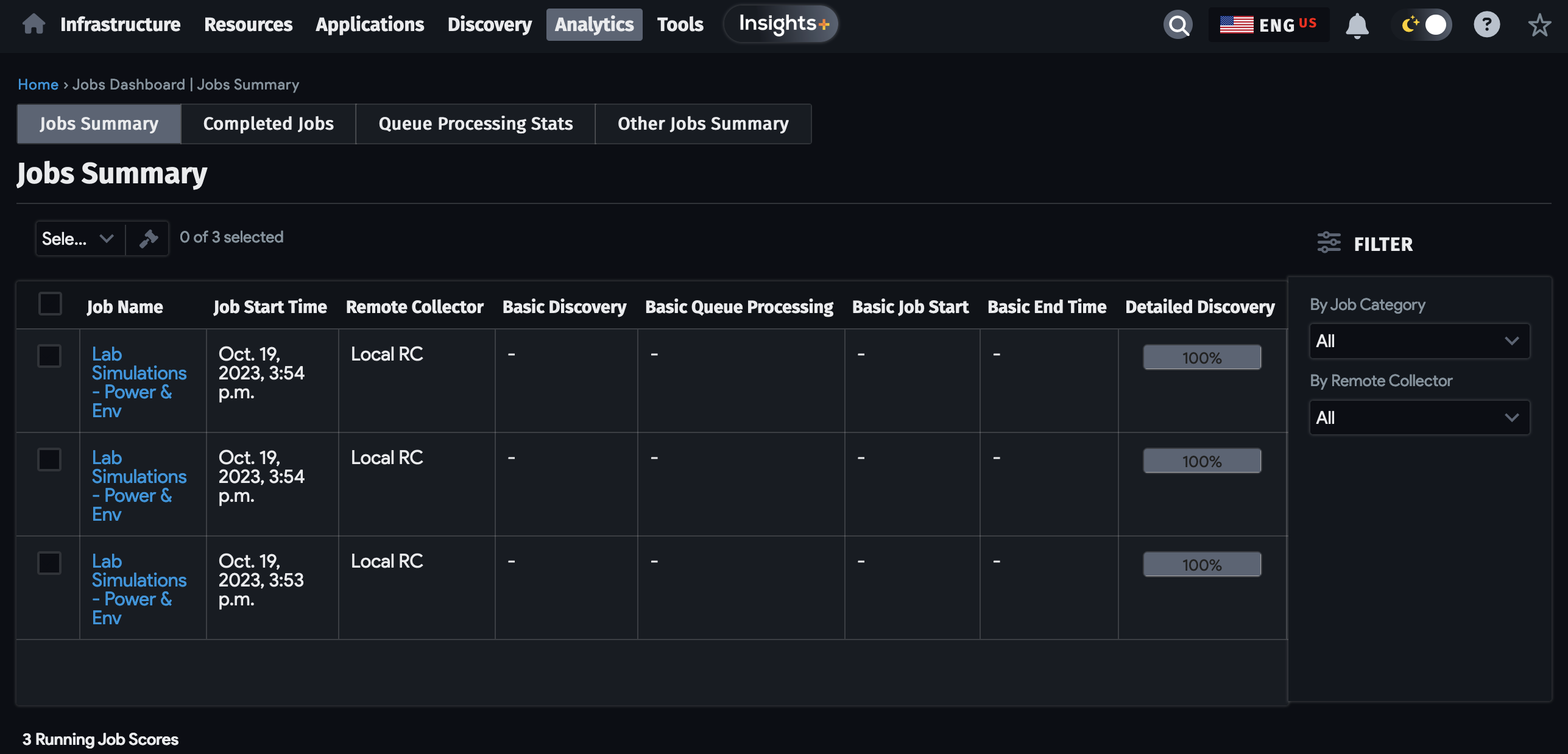

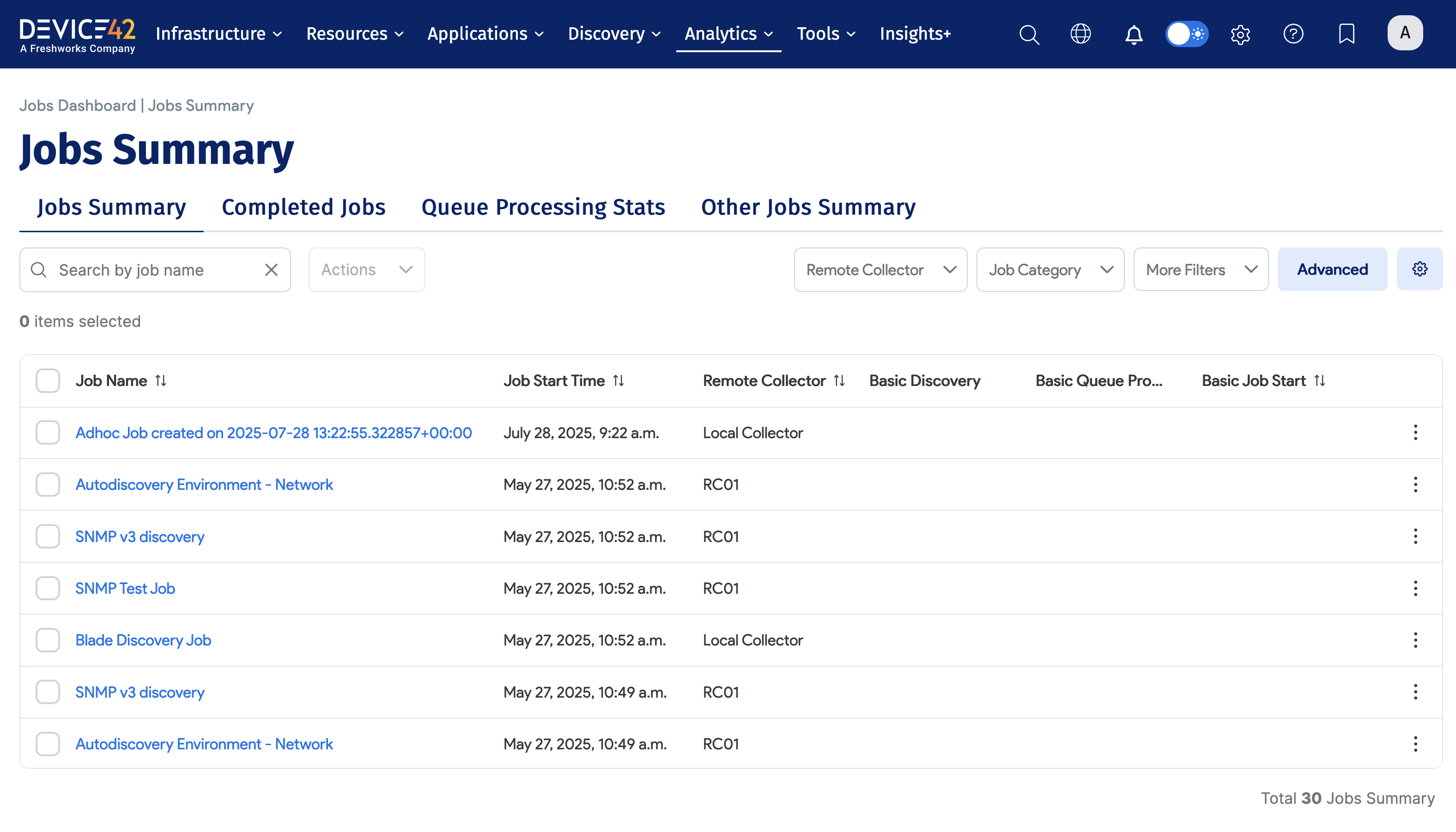

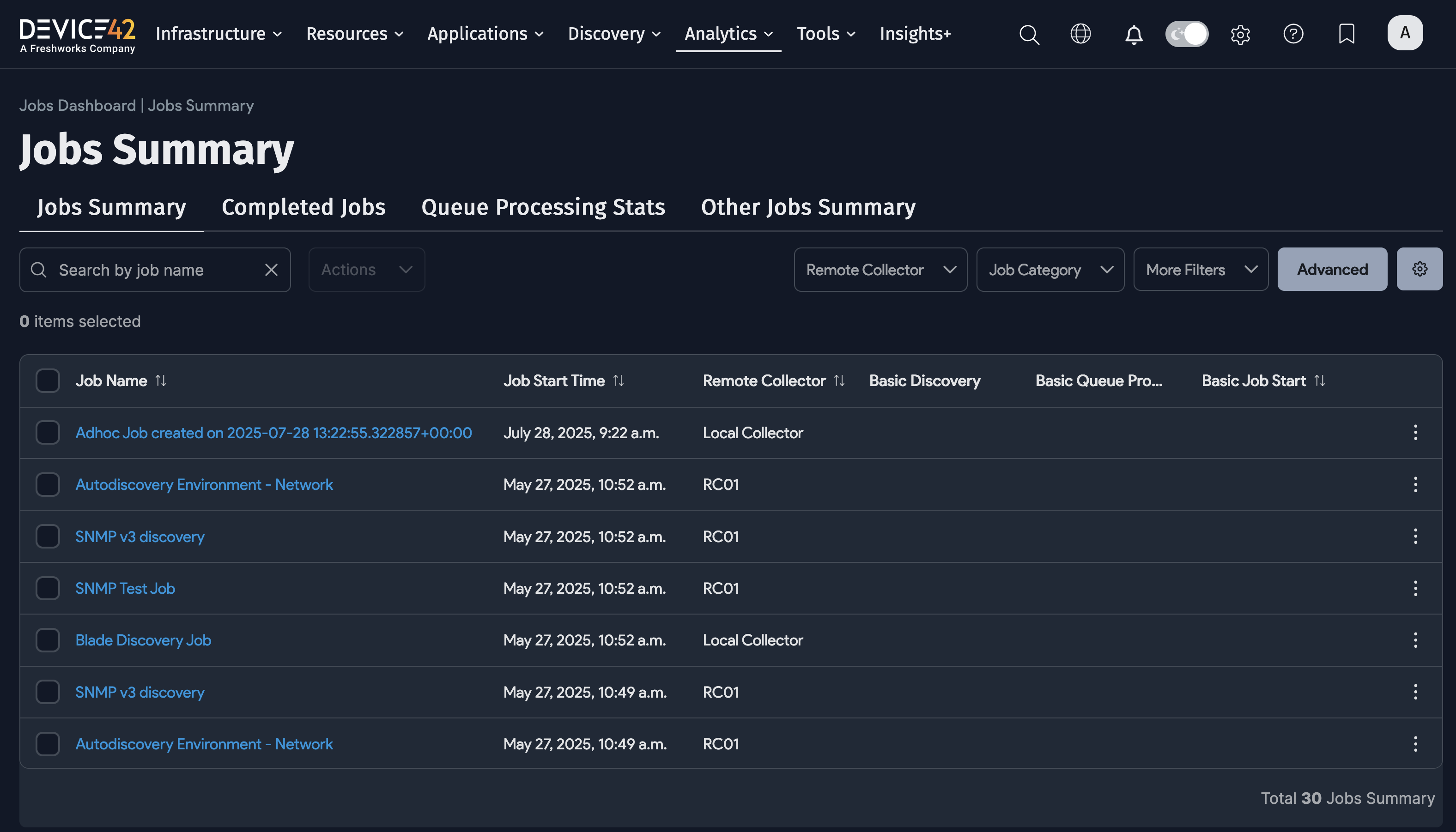

The main screen of the Jobs Dashboard looks like this:

Jobs Dashboard mainJobs Dashboard main

Kill and Delete a Running or Hung Discovery Job​

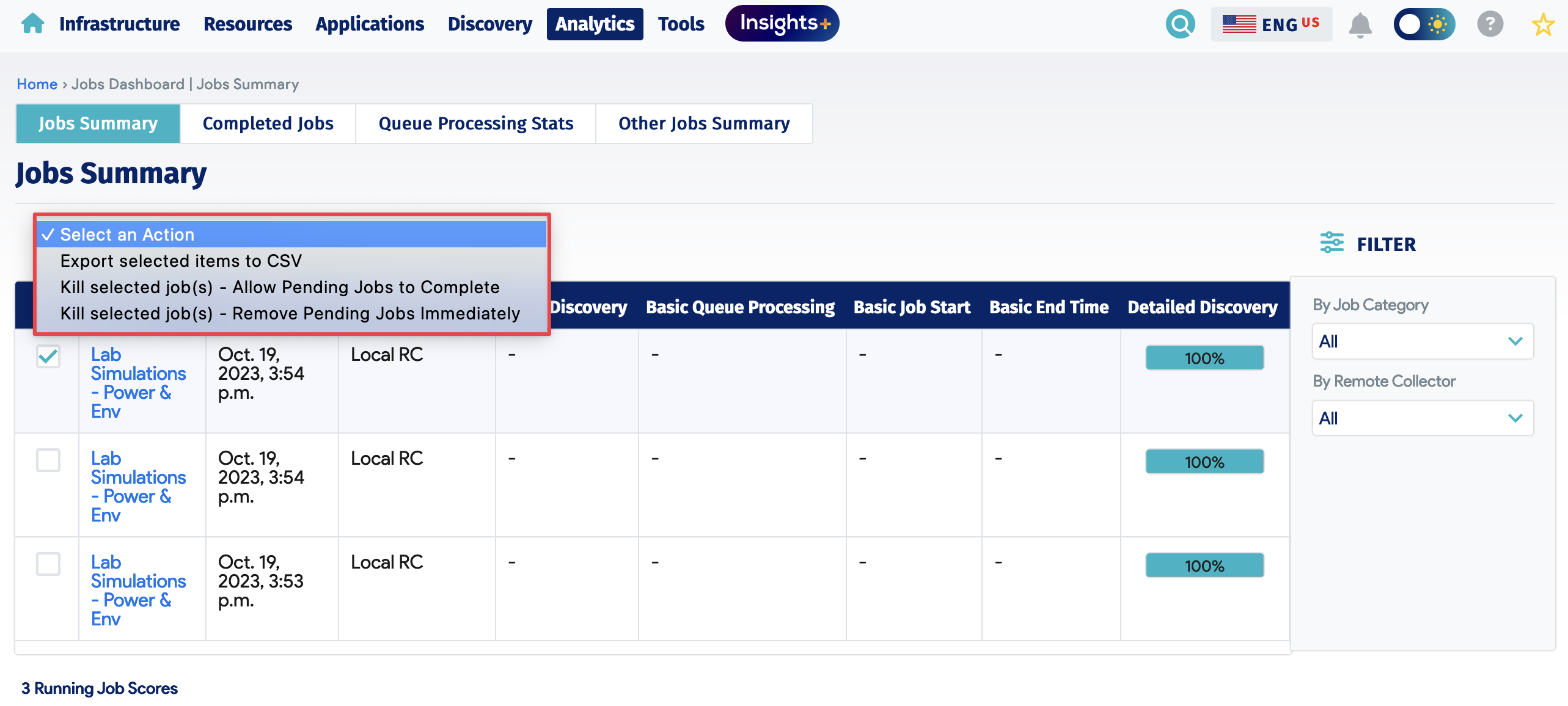

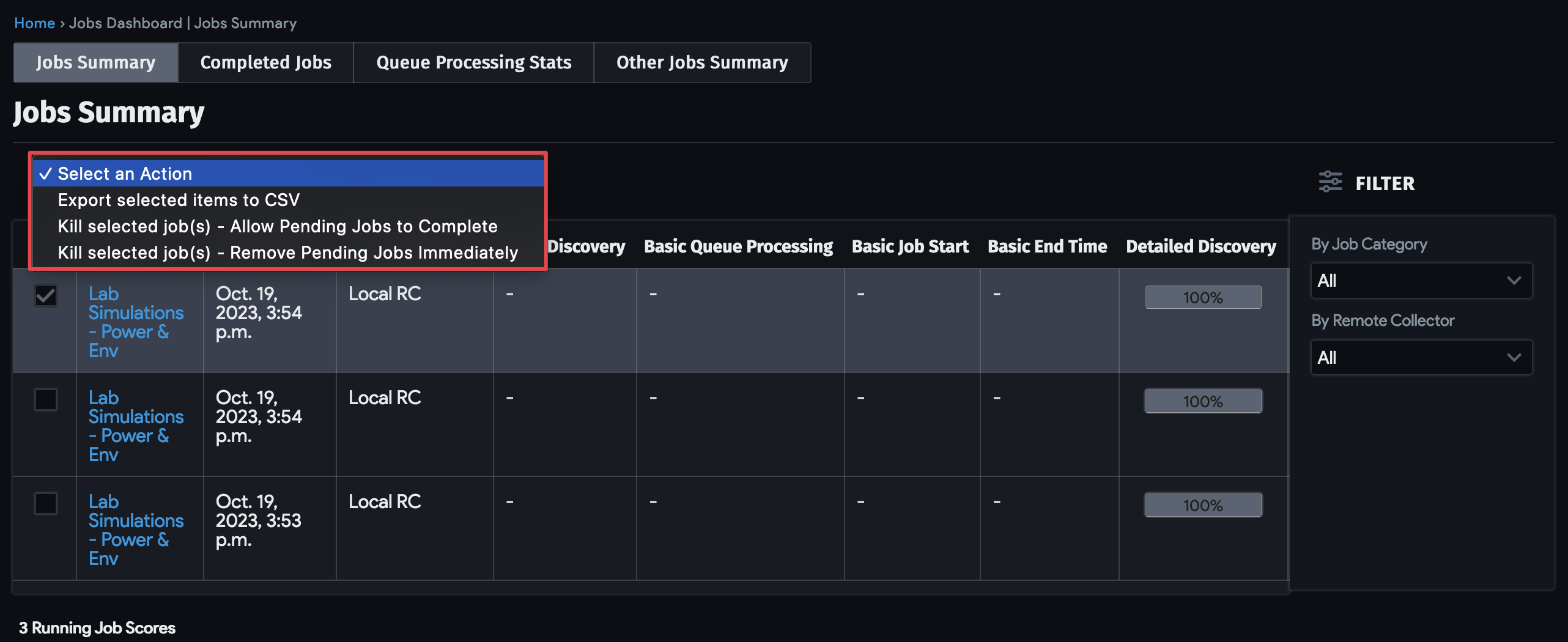

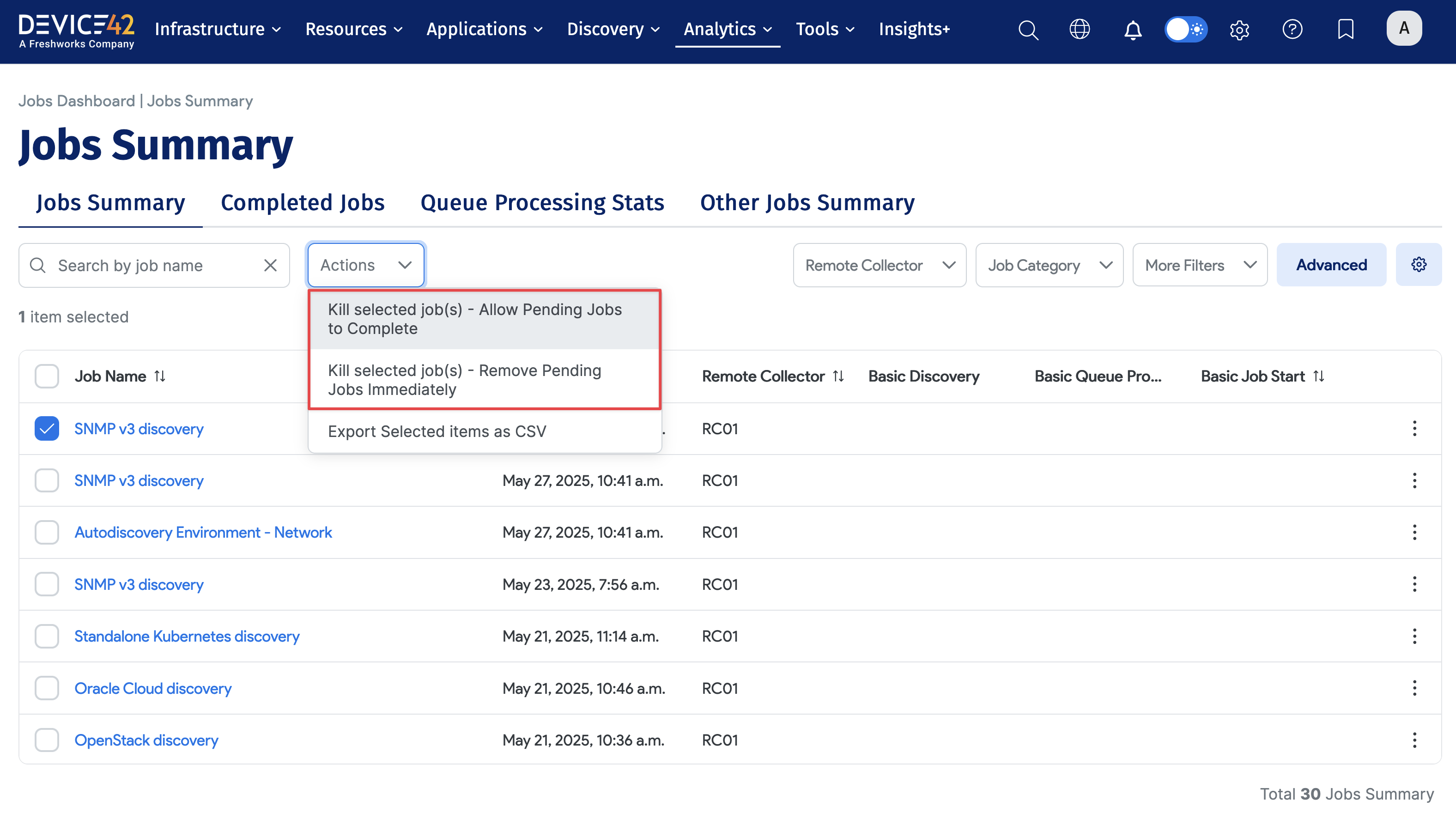

Check the box next to the job name(s) you want to kill, then select one of "Kill selected job(s)" options from the dropdown menu:

  • The first "Allow Pending Jobs to Complete" option will terminate the ongoing discovery but will let any payloads in the queue finish processing.
  • The second "Remove Pending Jobs Immediately" option will terminate the ongoing discovery job and remove any payloads in the queue. If a discovery is half-finished when cancelled, it will be ended and no further devices will be added or updated. However, if timed correctly, there may be an edge case where payloads are dispatched to the MA after emptying the queue.

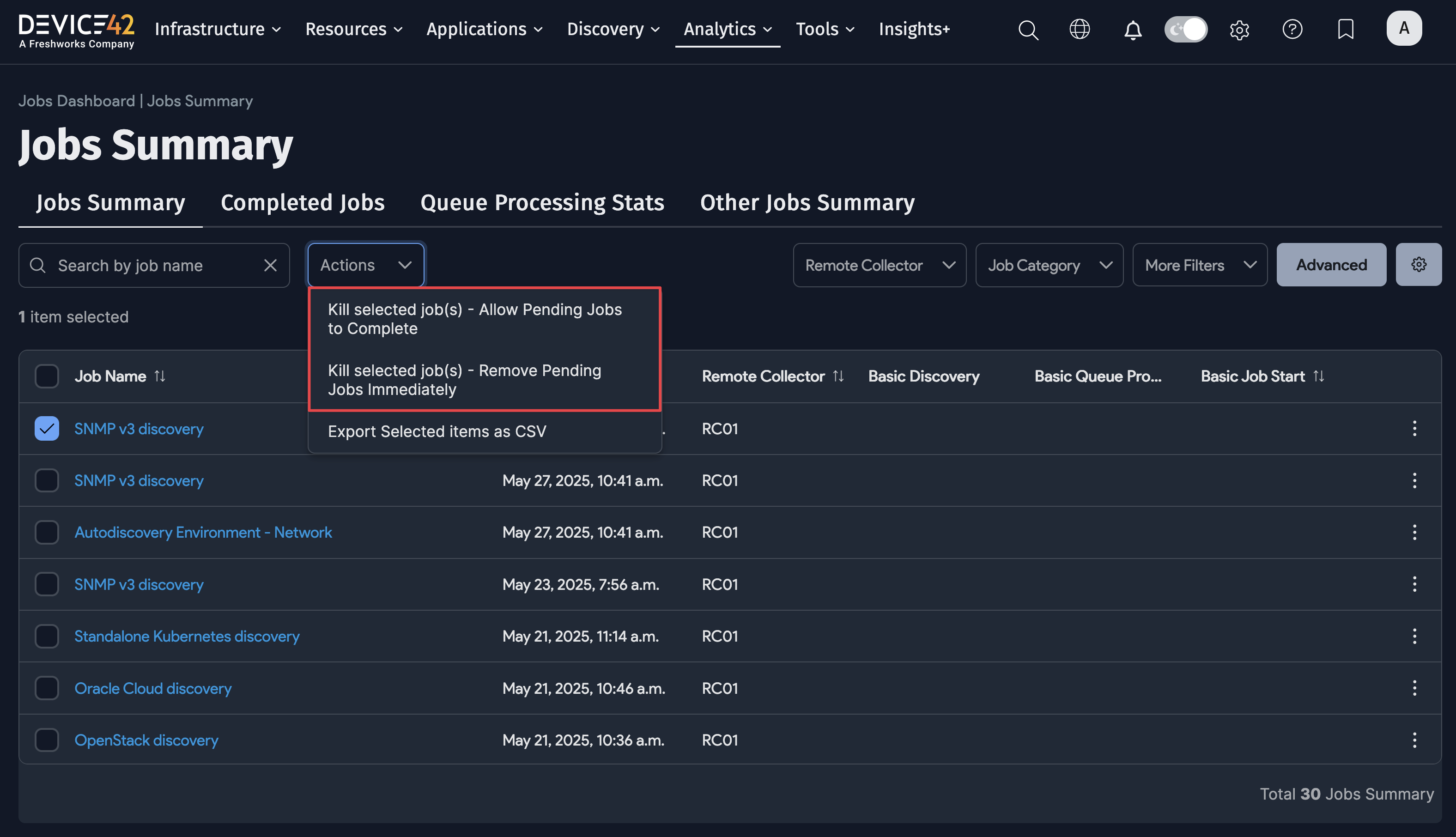

Jobs kill optionsJobs kill options

Sub-Dashboards​

There are three other sub-dashboards available from the Jobs Summary page: "Completed Jobs", "Queue Processing Stats", and "Other Jobs Summary".

Completed Jobs​

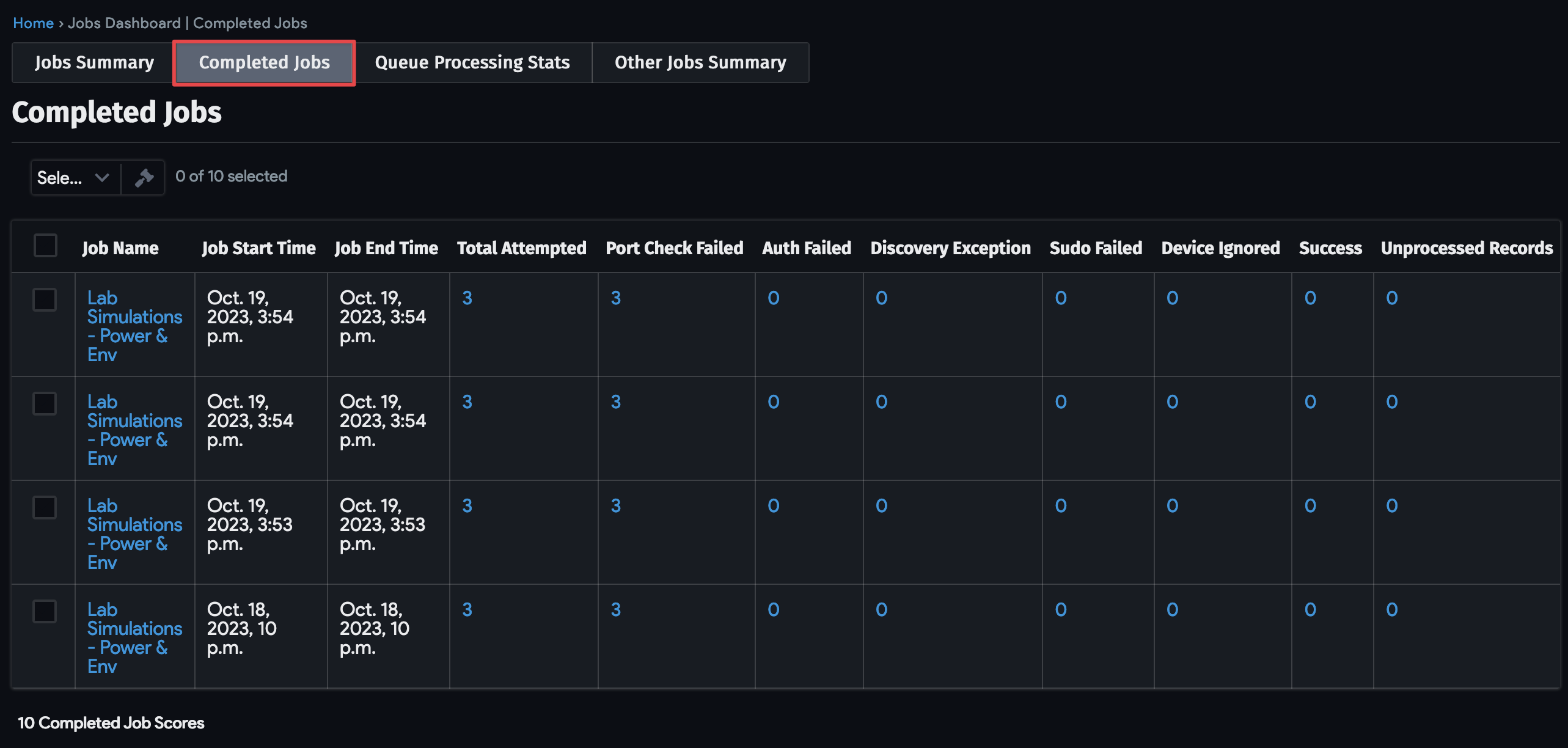

The completed jobs page lists jobs that have run in the past and are no longer running.

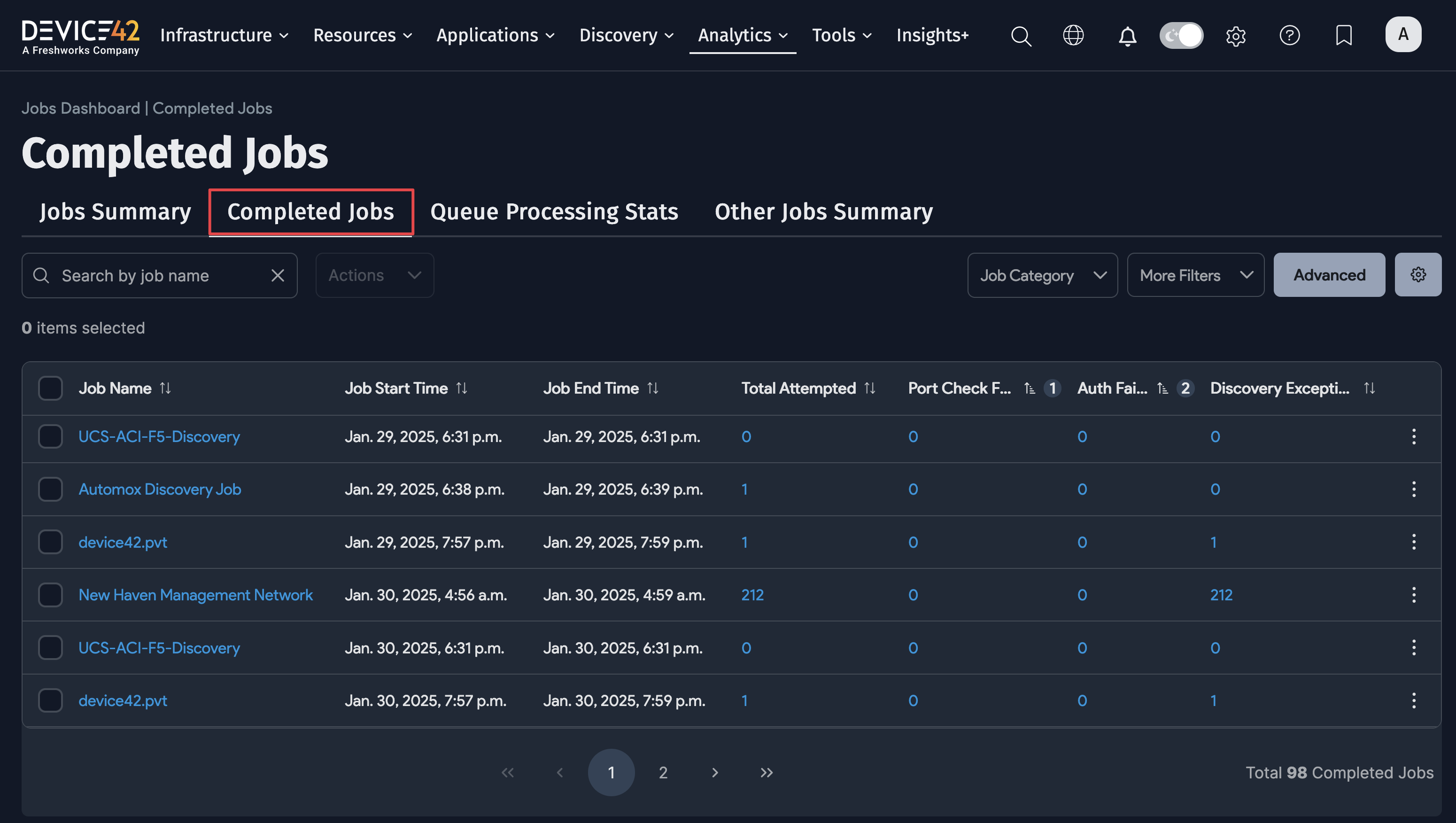

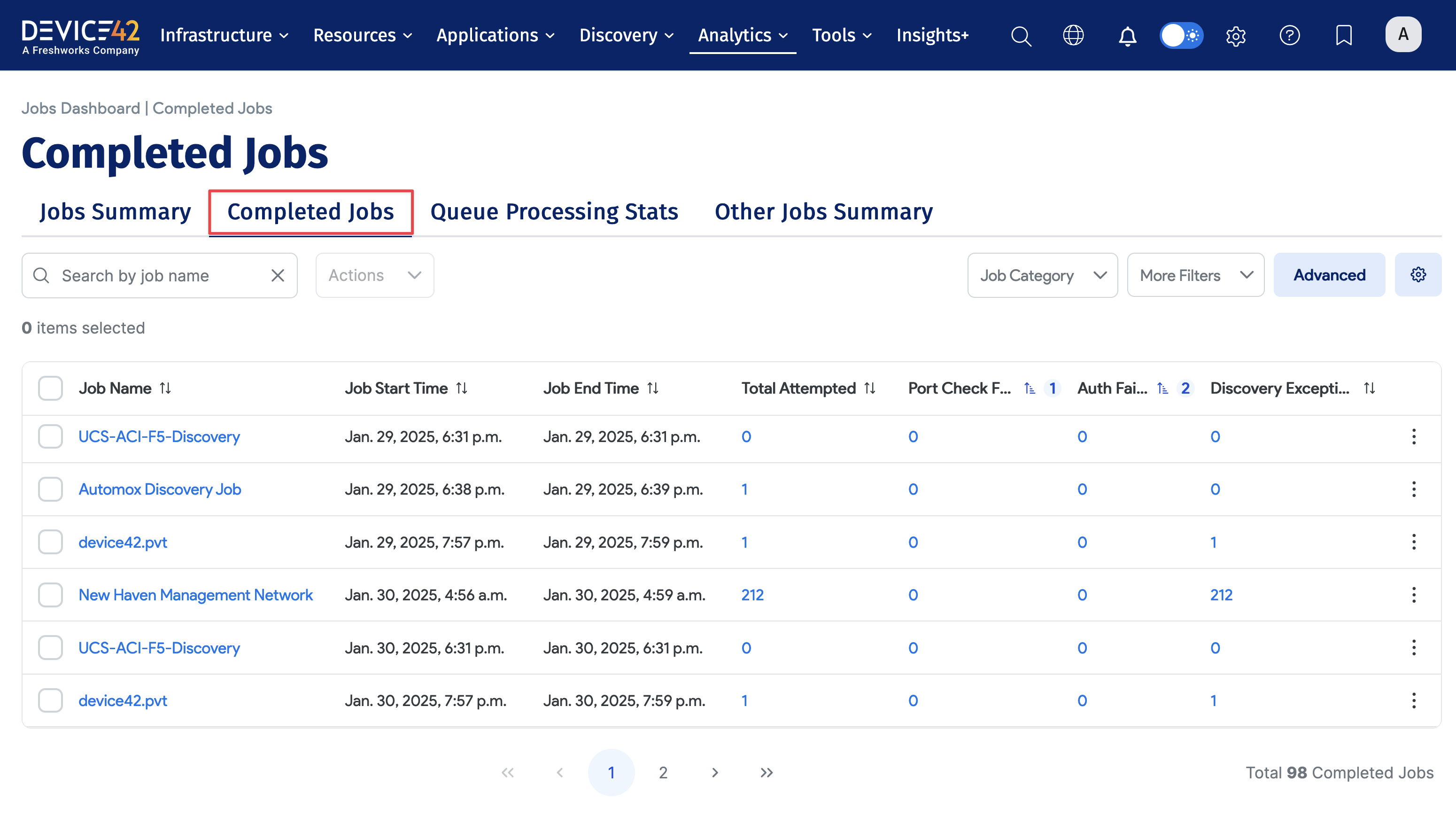

Completed Jobs dashboard pageCompleted Jobs dashboard page

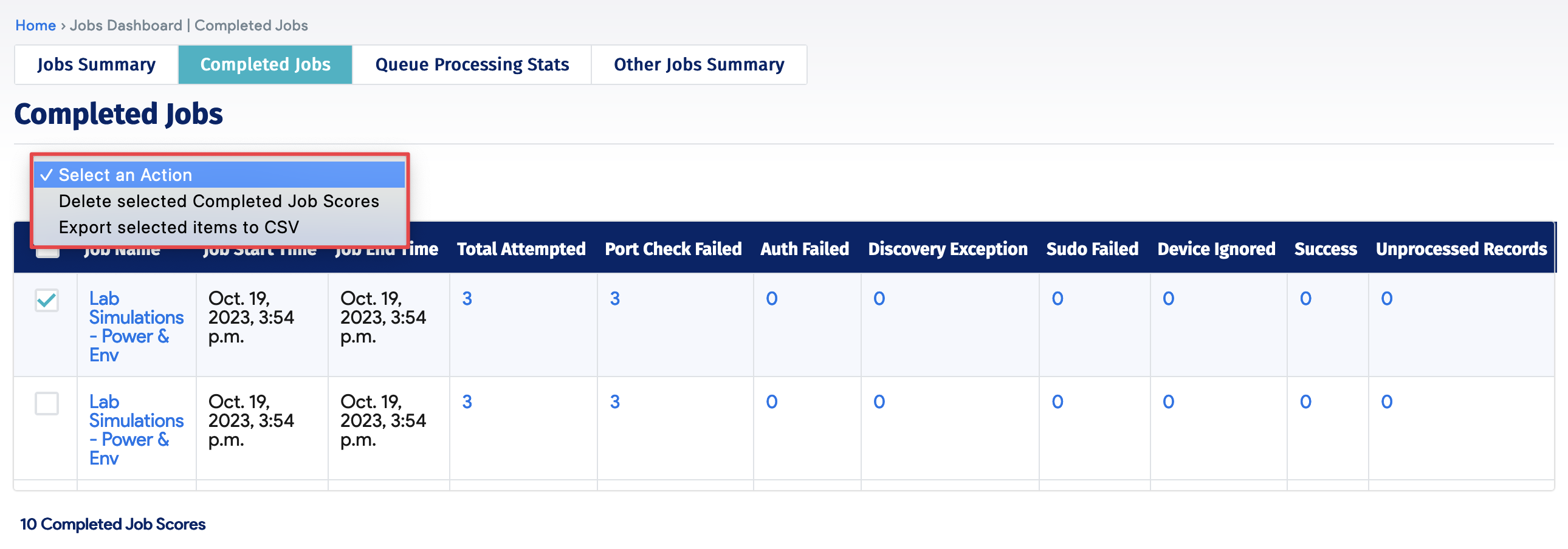

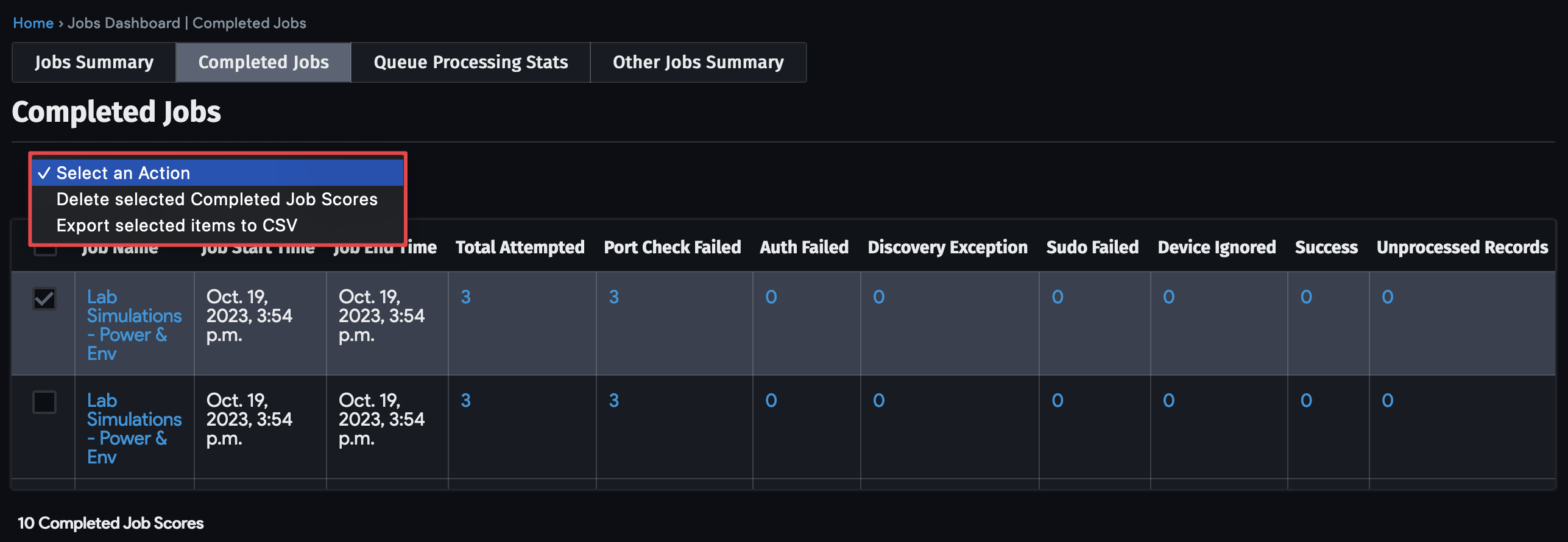

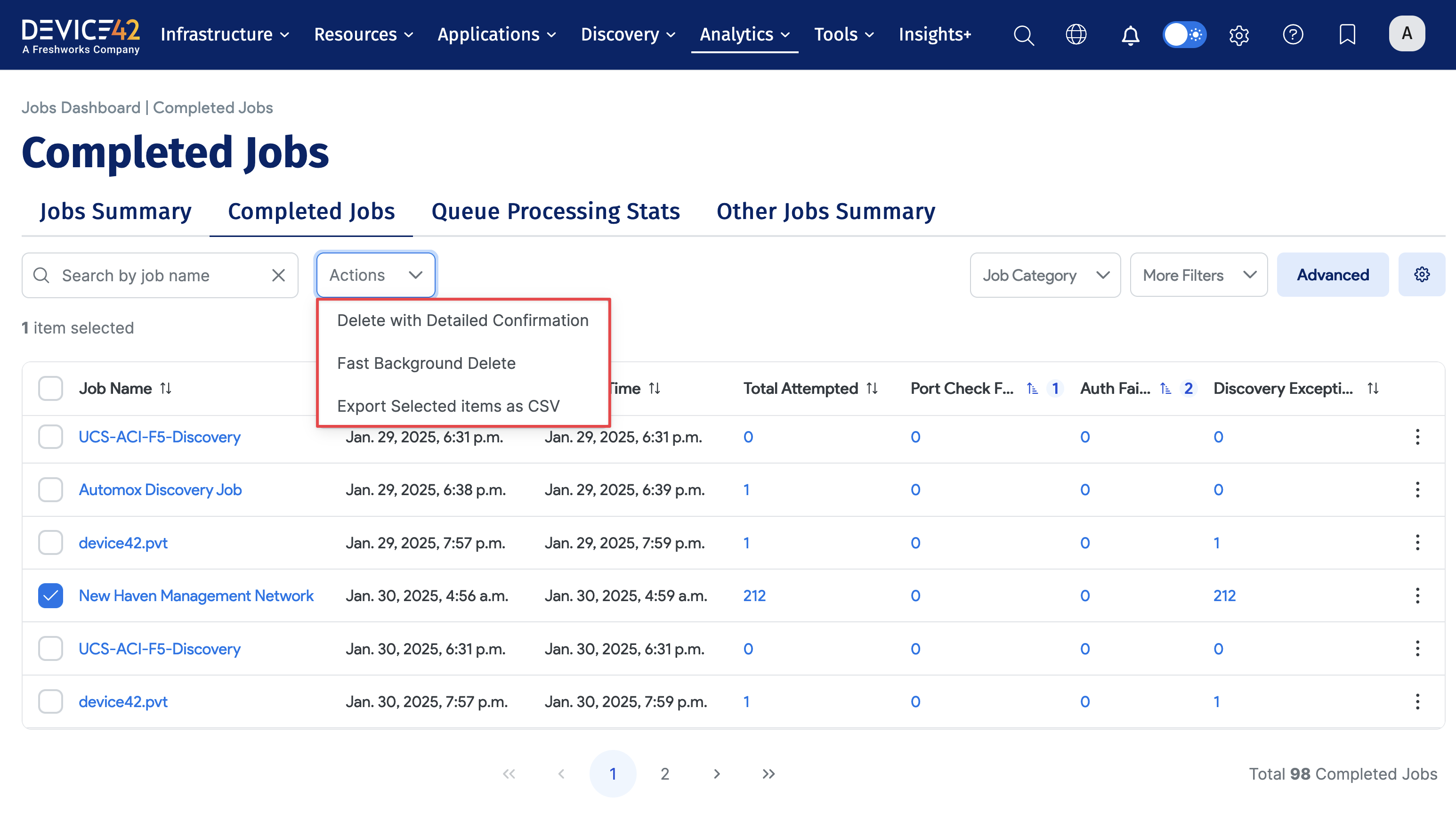

Delete or Export from Completed Jobs Users are also able to delete a completed job from the Completed Jobs page, as well as export one or more items to a CSV. Check the box next to the line(s) you are interested in and choose your desired action from the "Action" dropdown menu.

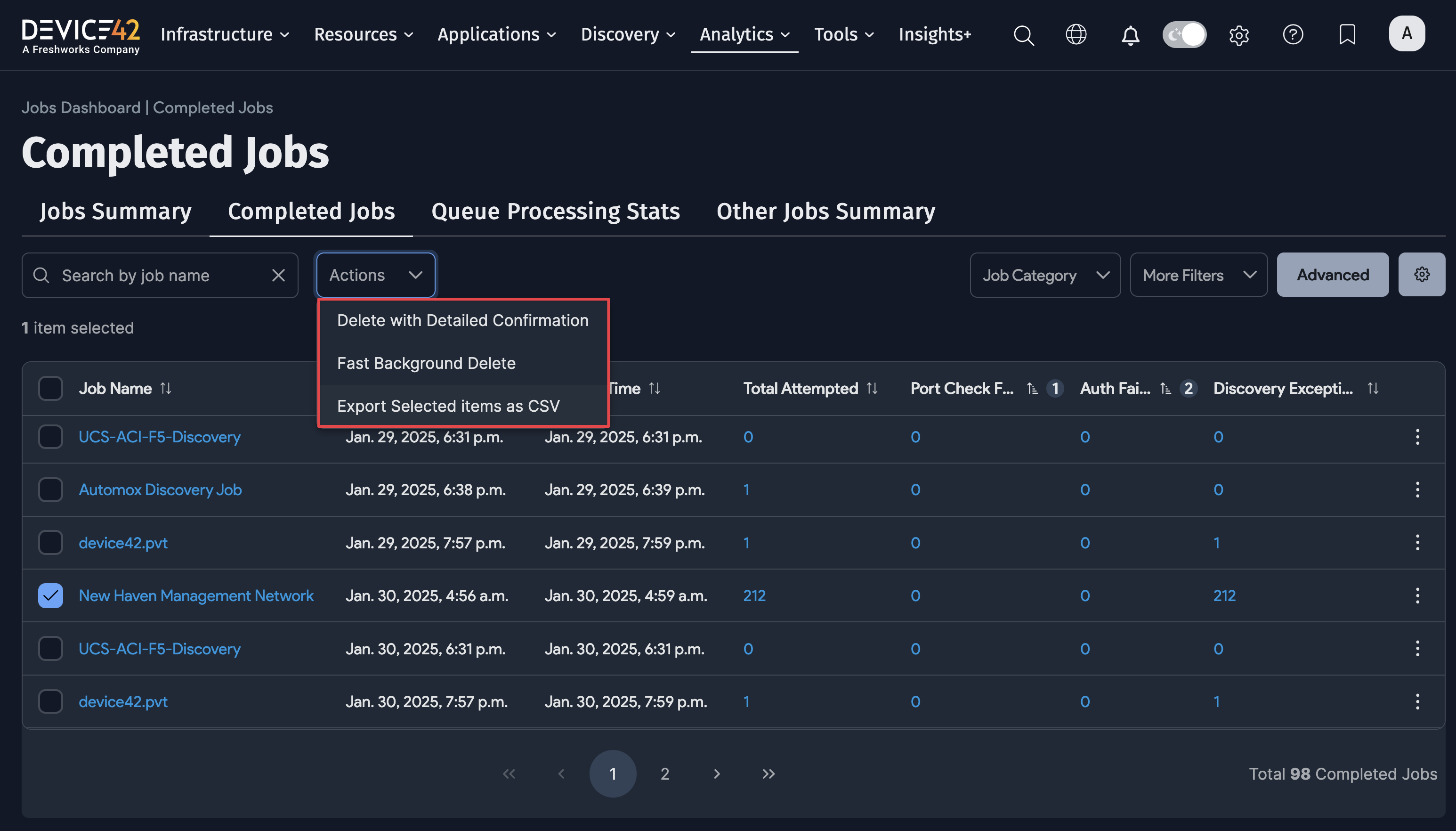

Completed Jobs actionsCompleted Jobs actions

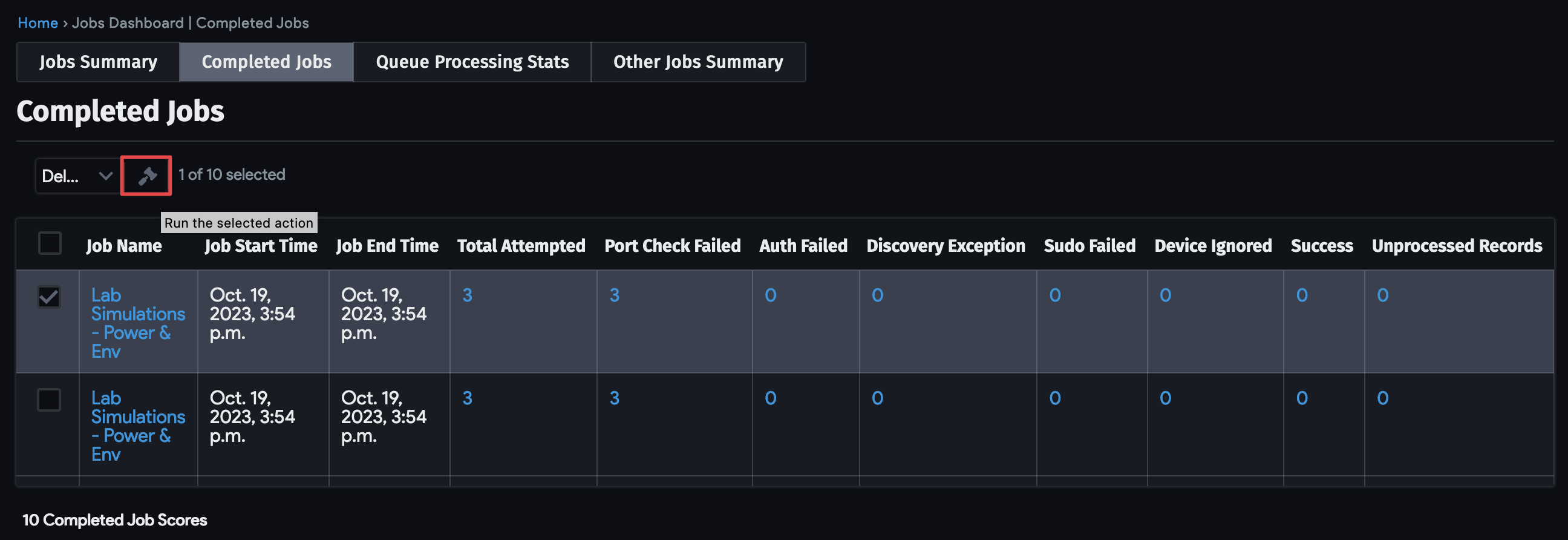

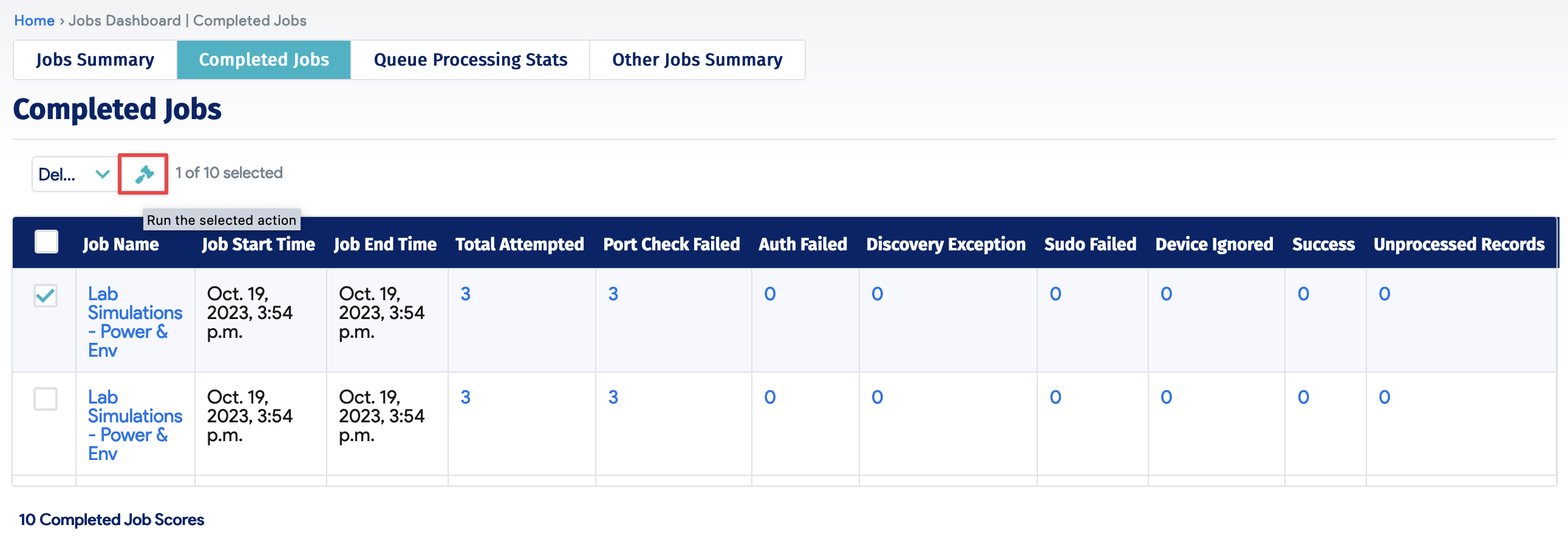

Next, click on the button with a 'gavel' icon to the right of the dropdown menu to execute the selected action.

Completed Jobs run actionCompleted Jobs run action

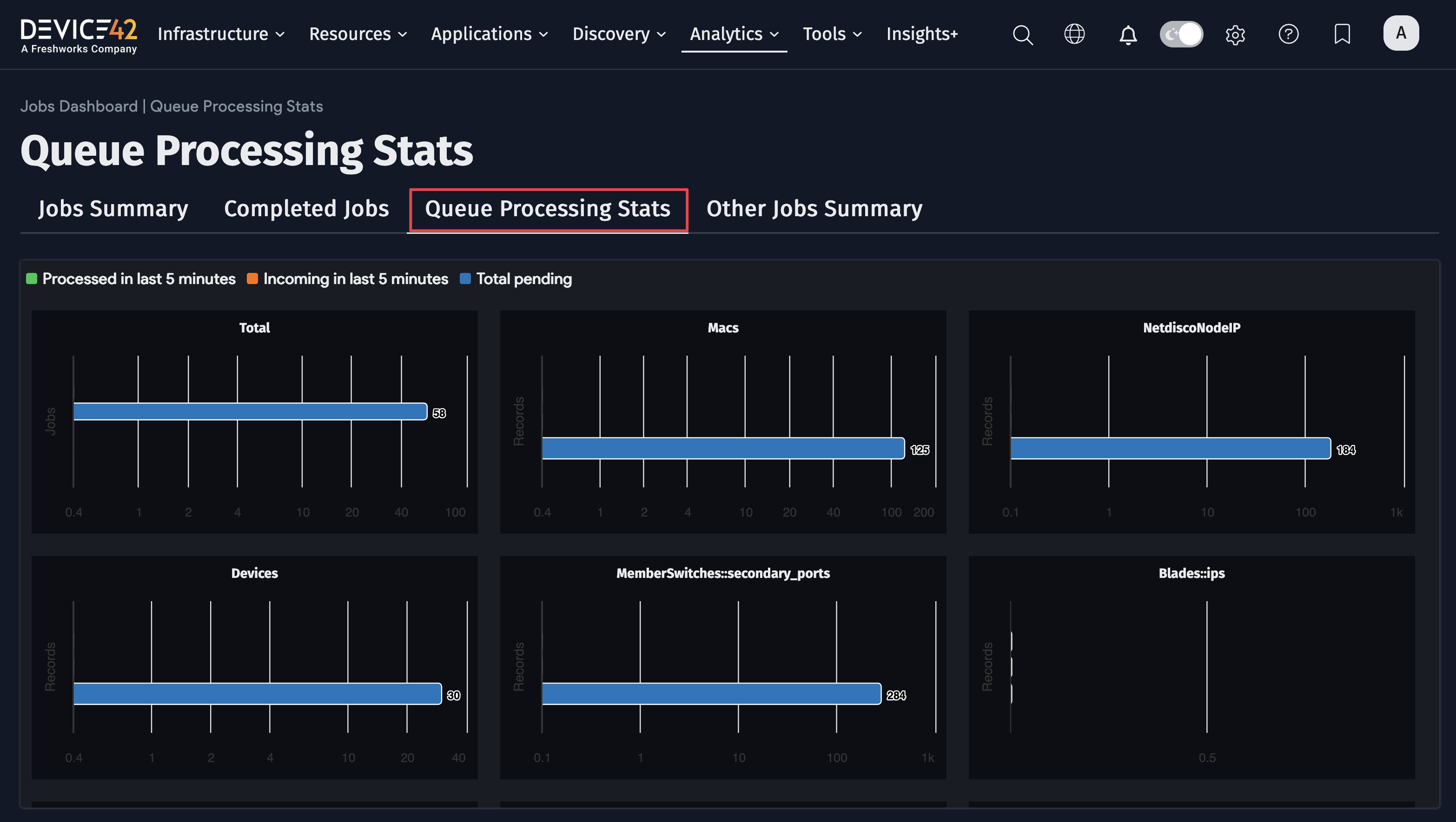

Queue Processing Stats​

The queue processing stats sub-dashboard allows you to monitor the status of various queues within Device42.

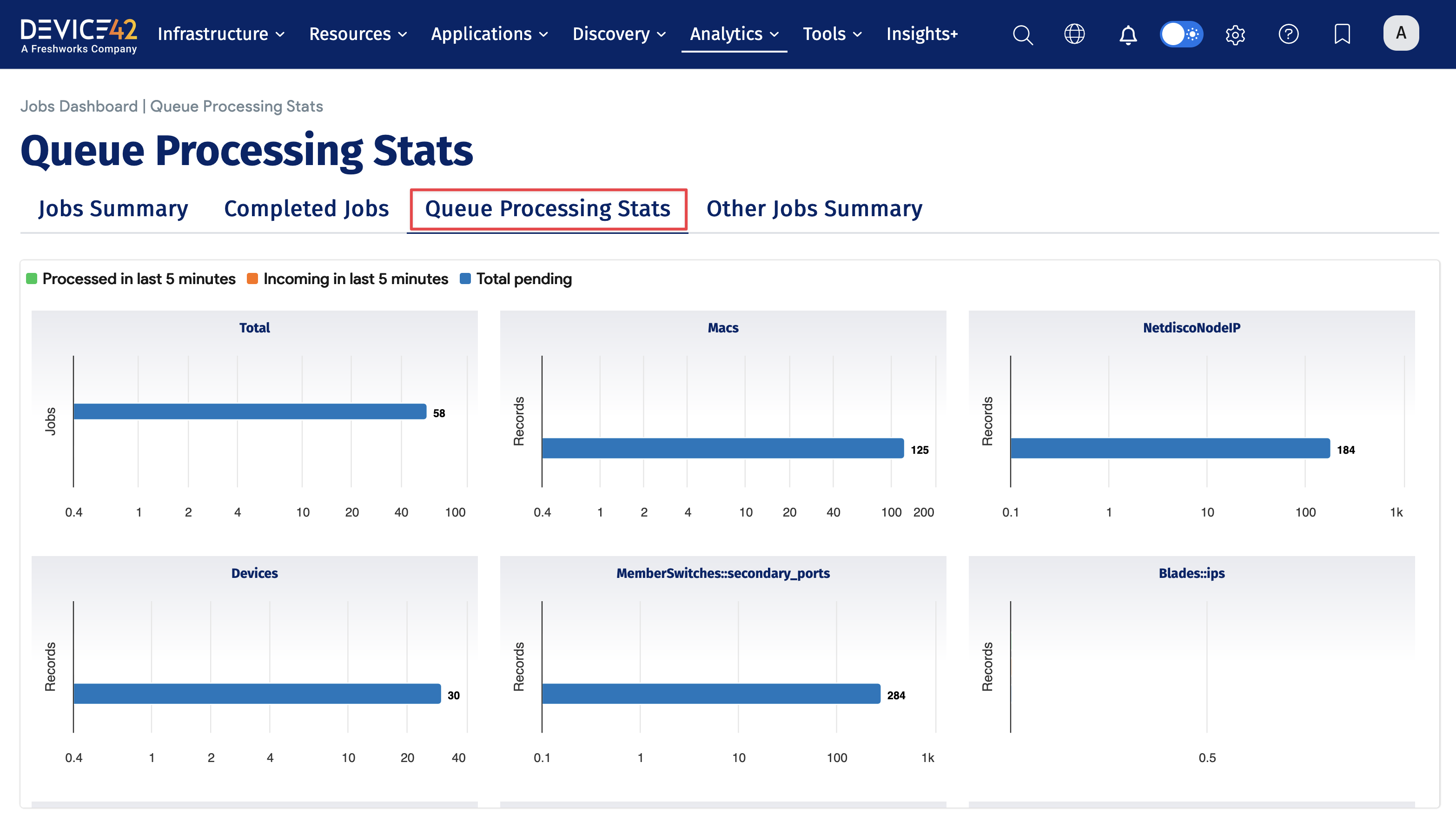

Queue Processing Stats pageQueue Processing Stats page

Other Jobs Summary​

Jobs that don't utilize the main Jobs Dashboard will be found in the Other Jobs Summary sub-dashboard. Other jobs include RU (Resource Utilization) jobs, SP (Service Port) jobs, and vserver jobs. Job statuses can be monitored and you can also kill any running job from this page by selecting the checkbox next to it and choosing "Kill Selected Jobs" as your action.

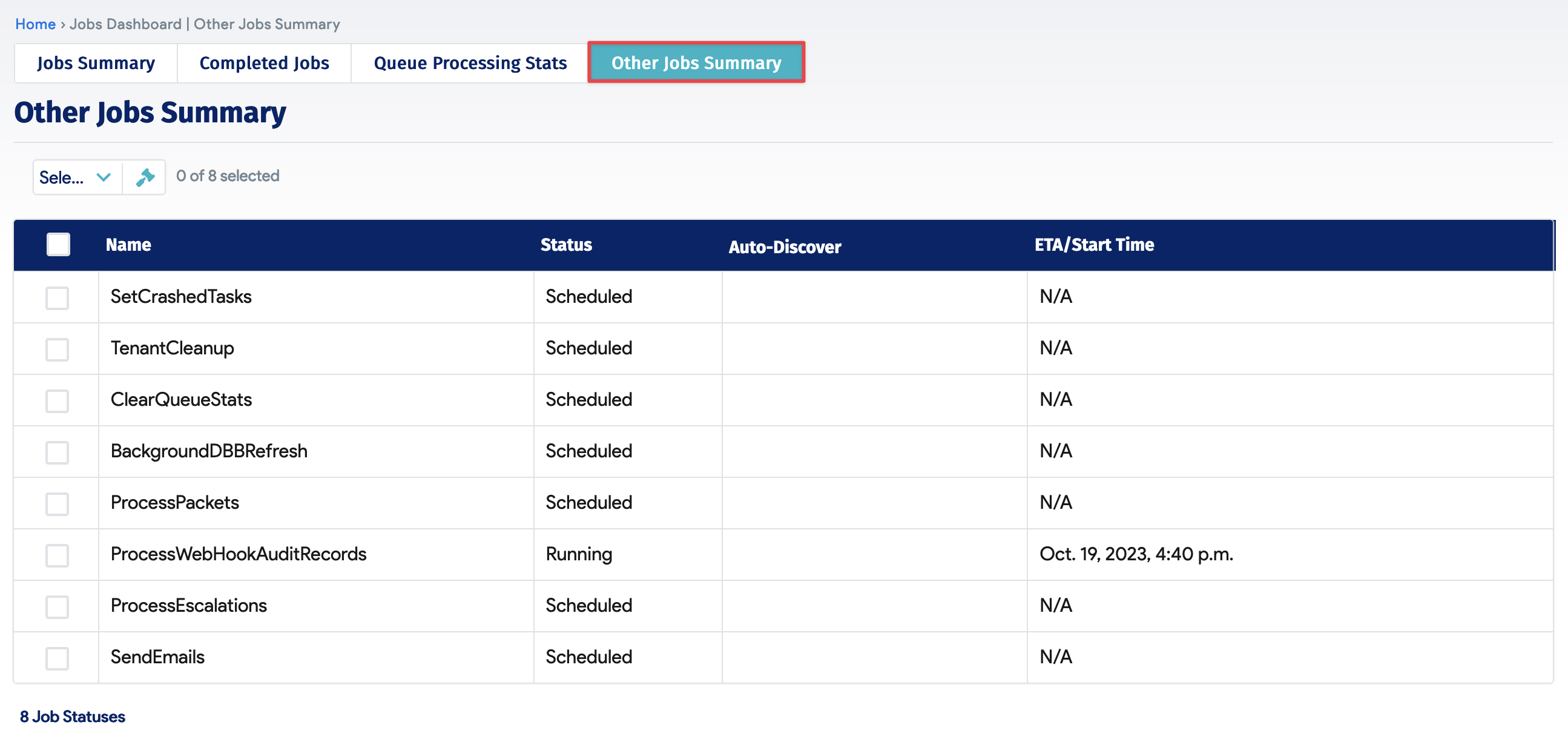

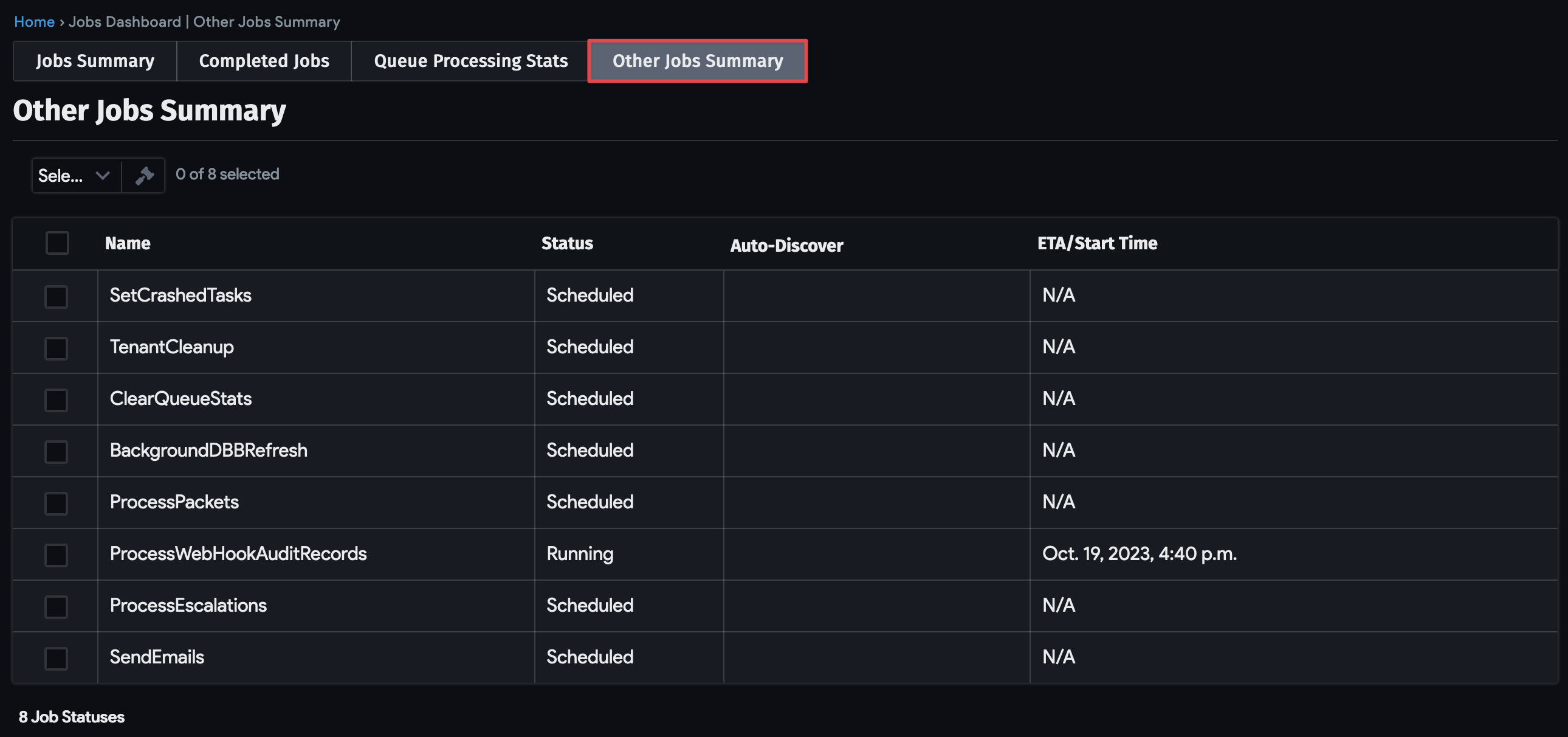

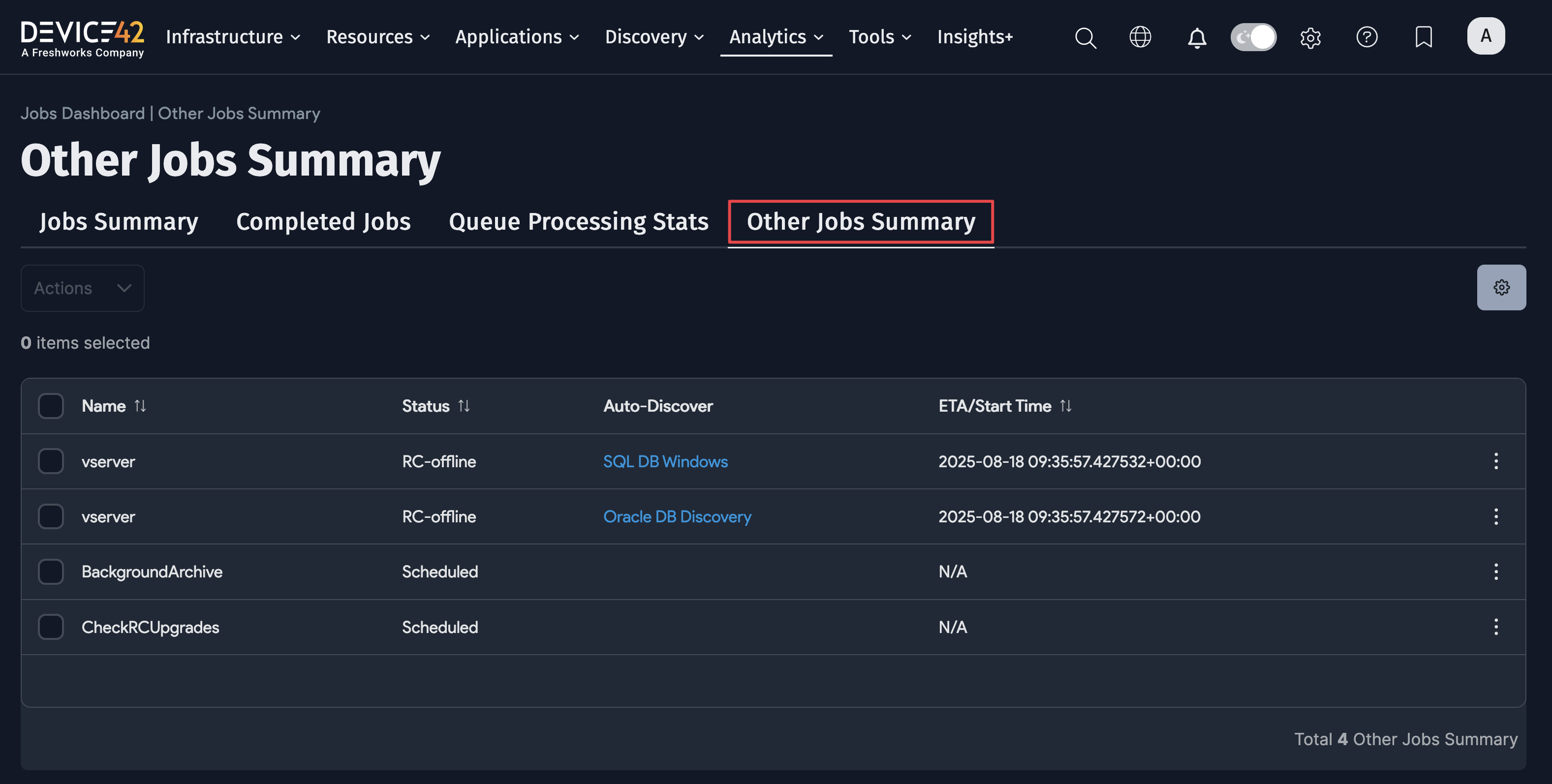

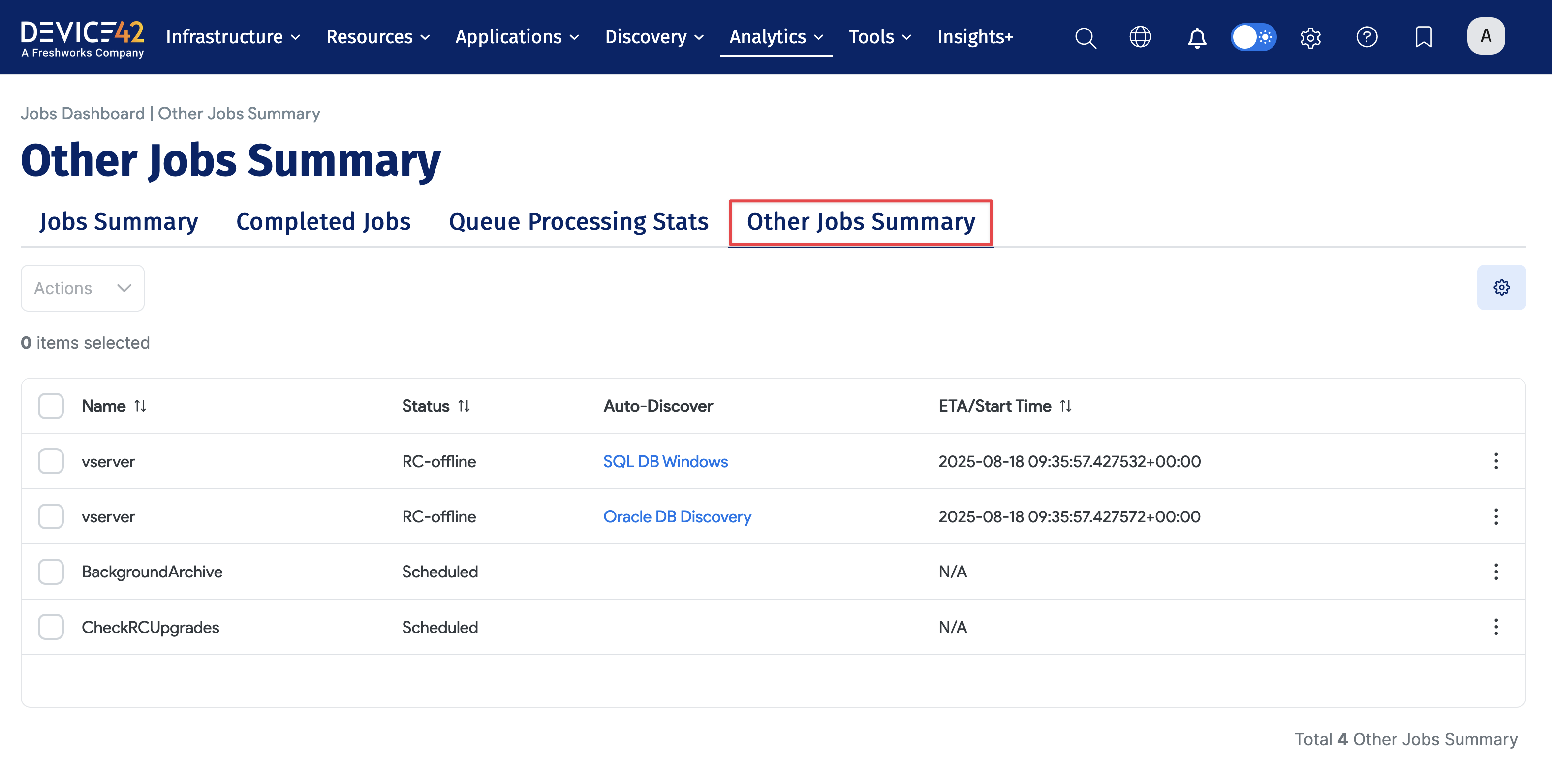

This is a sample of the "Other Jobs Summary" page:

Other Jobs Summary pageOther Jobs Summary page
