Collecting SNMP Walk Output

You can collect SNMP walk output for a network device or PDU right from the GUI. Then, you can download the output and send it to us for further troubleshooting.

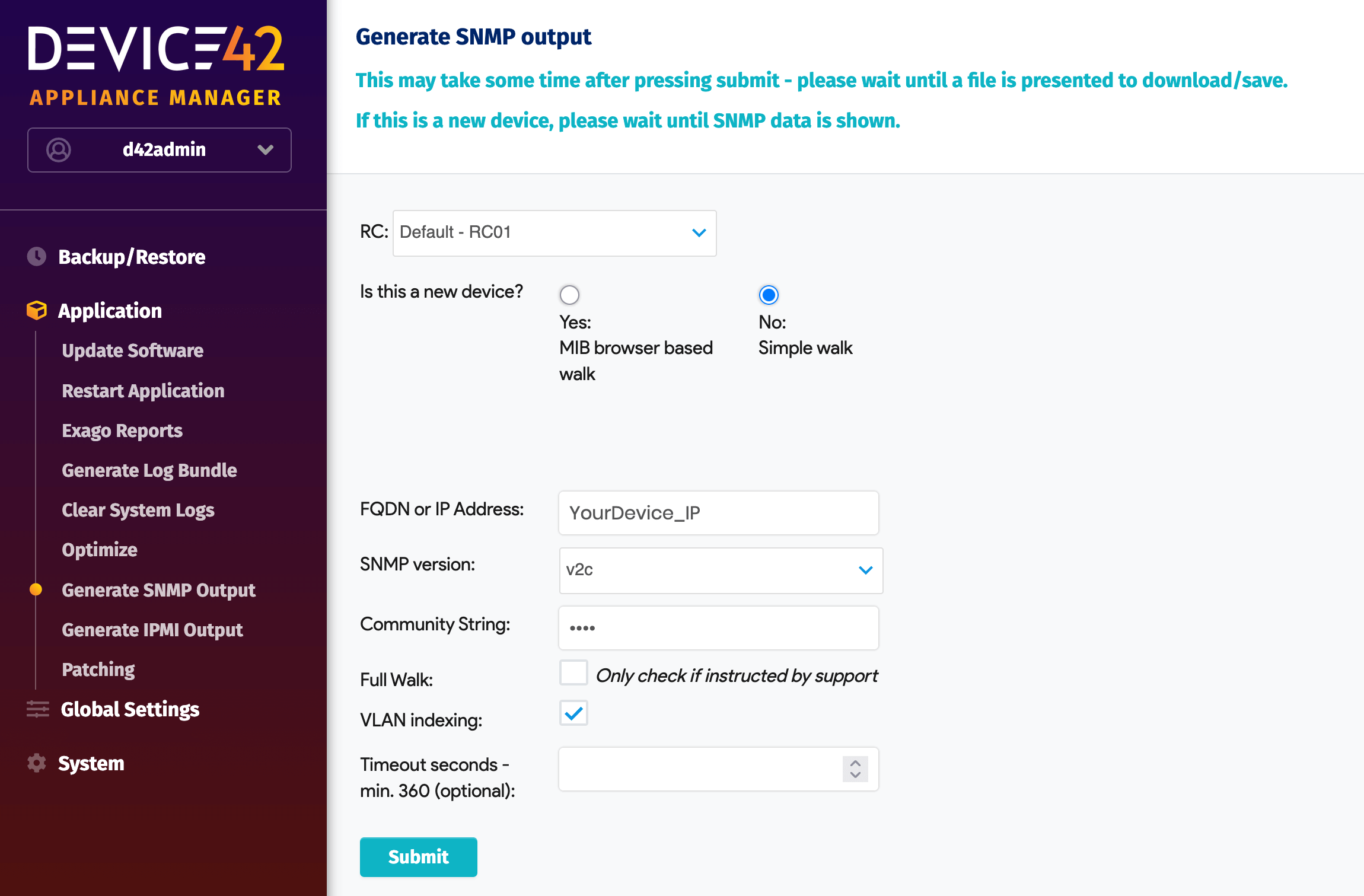

From the Appliance Manager, go to Application > Generate SNMP Output.

Simple SNMP Walk Output​

If this is not a new device, select the No: Simple walk option.

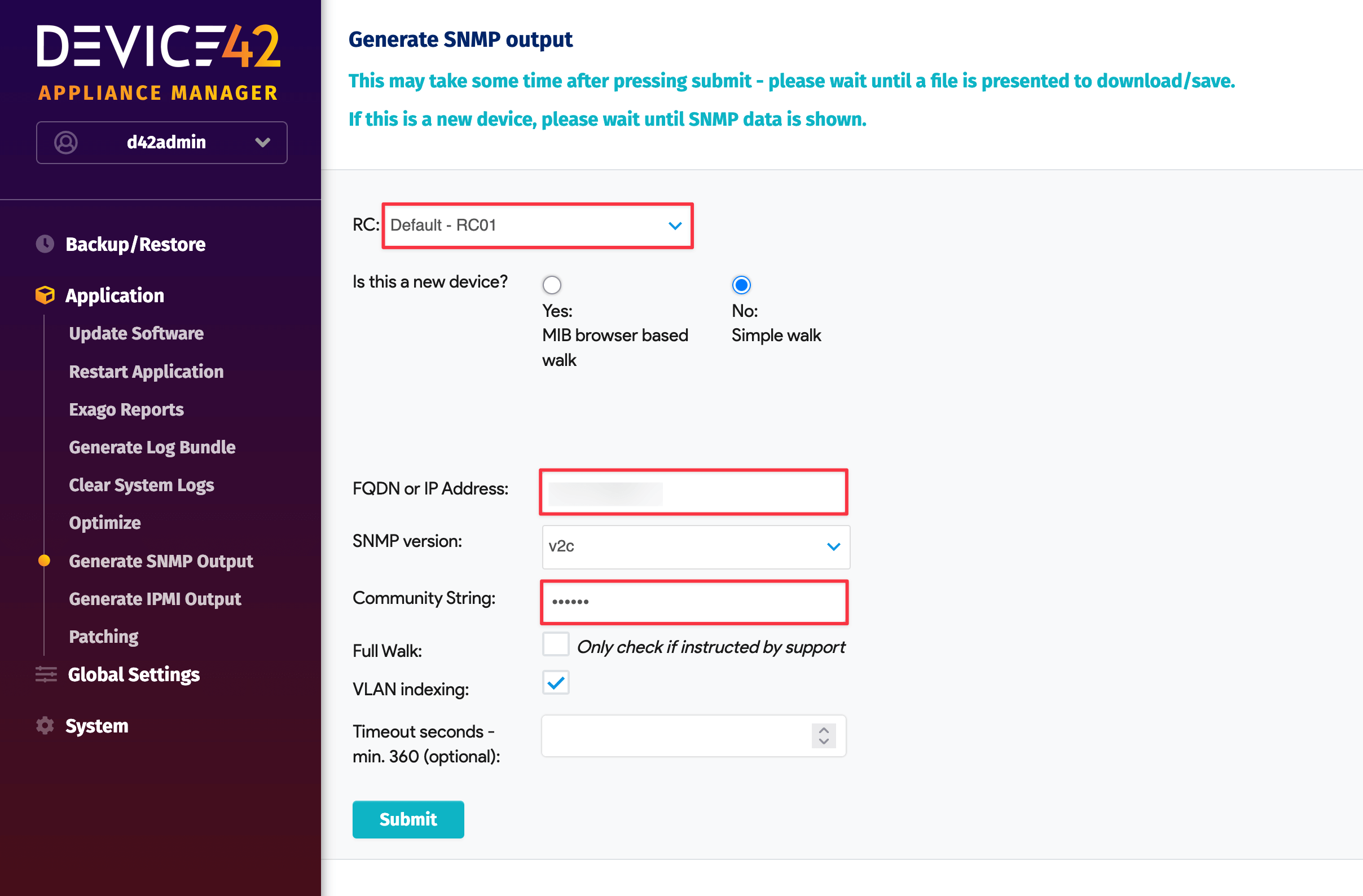

Add your target switch or other SNMP target device info, click Submit, and please be patient as it might take a few minutes. Download the generated file and send it to support.

Collect SNMP walk Appliance Manager

MIB Browser-Based Walk​

For new devices, select Yes: MIB browser based walk.

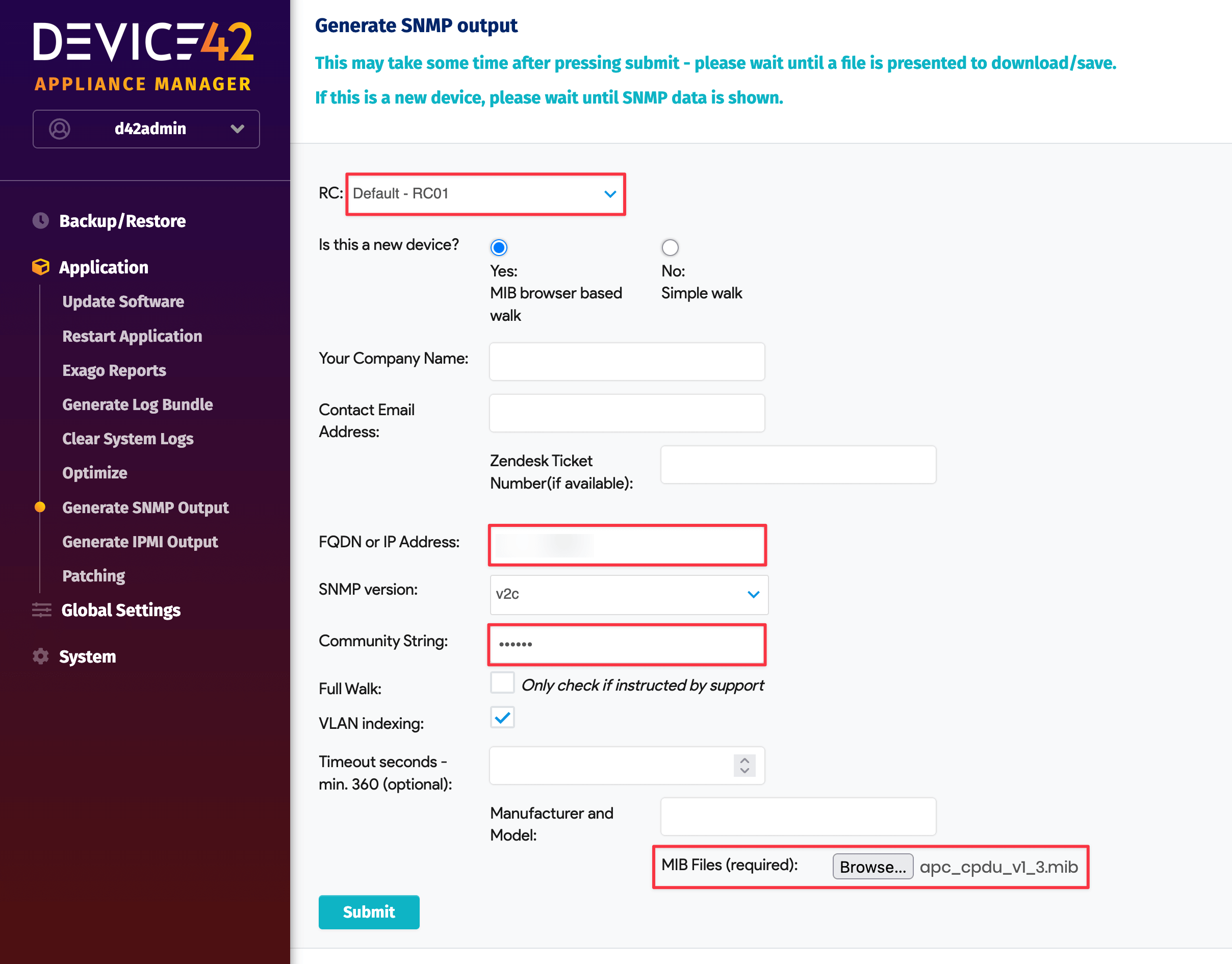

  • Select your RC and enter the required fields: FQDN or IP Address, Community String, and MIB file upload.

    MIB file upload

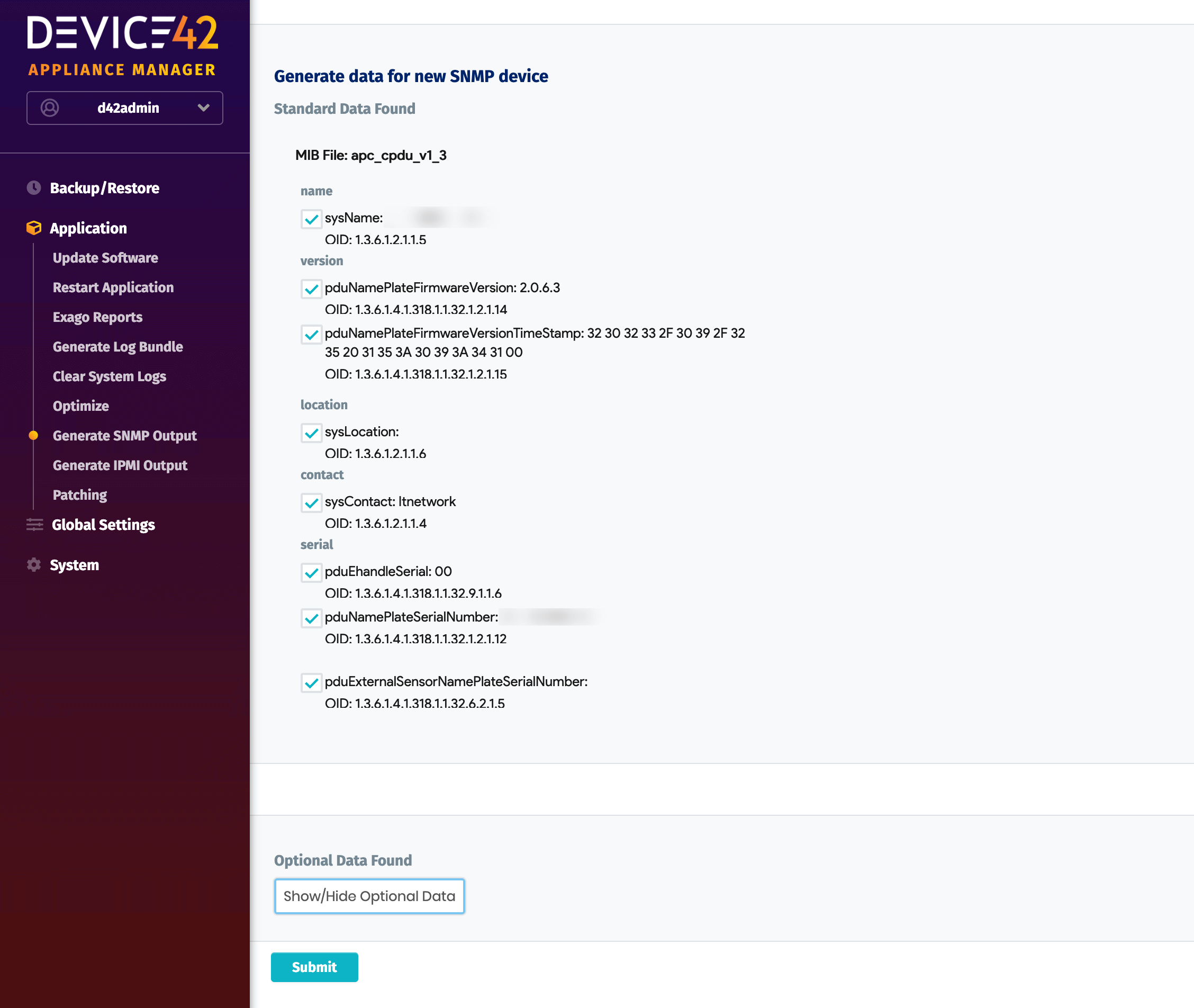

  • Select the data to generate for the new device and Submit.

    Generation options

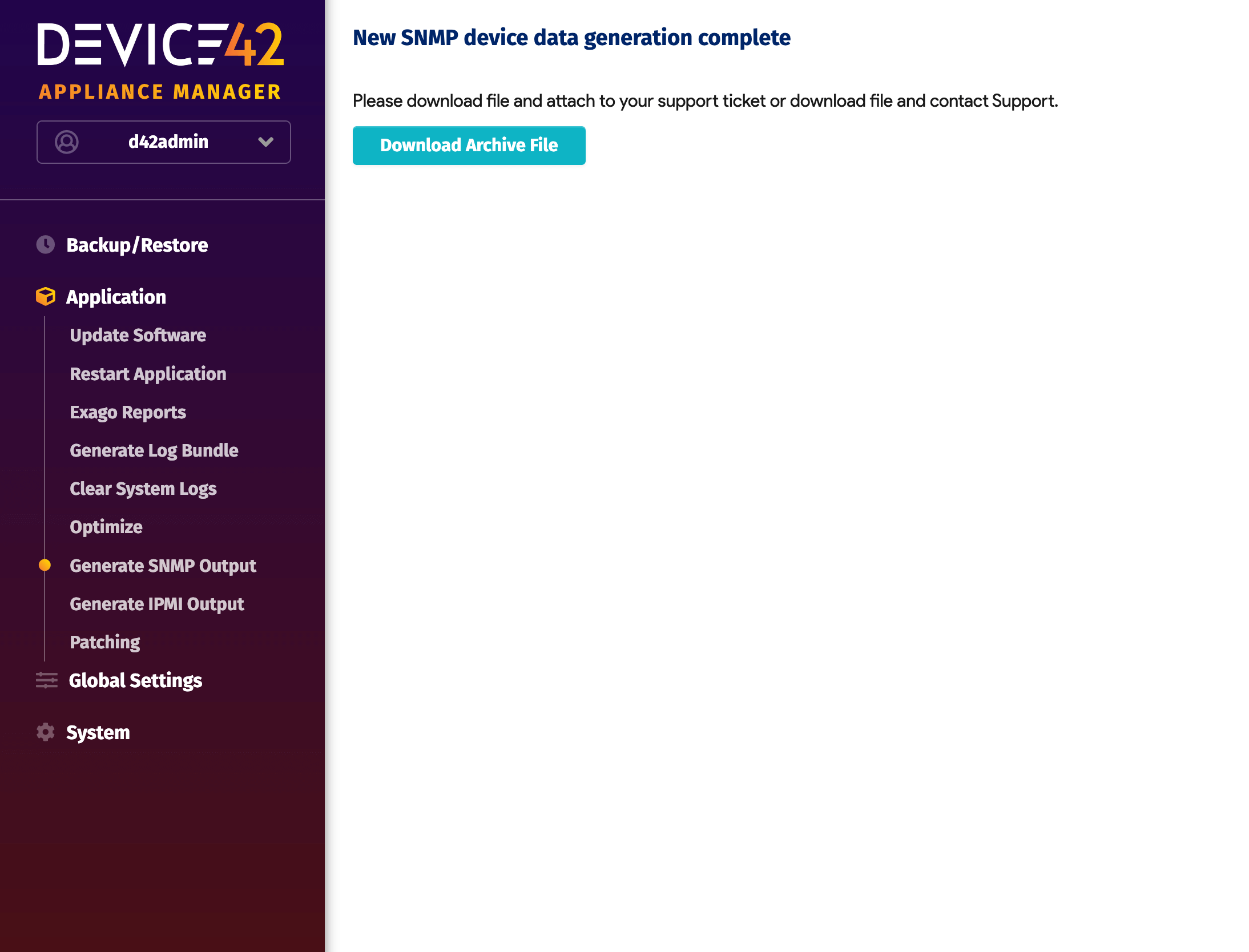

  • Click Download Archive File and save the file to attach to an existing support ticket. If needed, create a new ticket or email support.

    Download Archive file

Alternative SNMP Walk Generation​

If there is an issue, the network is not reachable, or you simply prefer using the terminal, you can instead run the following from any machine that has 'snmpwalk' installed for SNMP v2:

snmpbulkwalk -Cc -ObentU -v2c -c COMMUNITY DEVICE > output_file_name
snmpbulkwalk -ObentU -v 2c -c COMMUNITY DEVICE .1.3.6.1.4.1 >> output_file_name

You can use the following for any system using SNMP v3:

snmpbulkwalk -Cc -ObentU -v 3 -u user_name -l authNoPriv -a MD5 -A auth_pass DEVICE > output_file_name
snmpbulkwalk -Cc -ObentU -v 3 -u user_name -l authNoPriv -a MD5 -A auth_pass DEVICE .1.3.6.1.4.1 >> output_file_name
